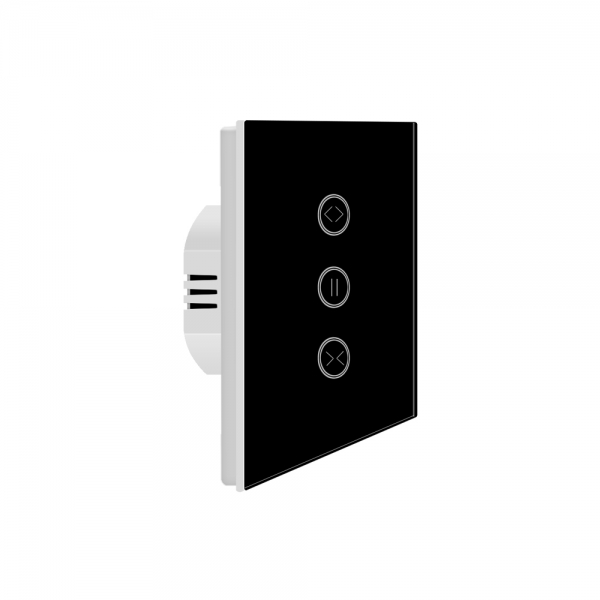

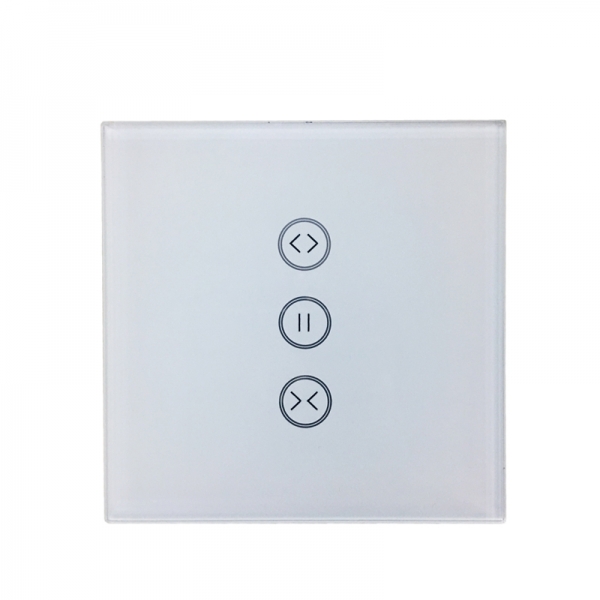

Curtain Switch

SM-SW101-C

Wi-Fi     SM-SW101-C
ZigBee  SM-SW101-CZ
Curtain switch 86 x 86 mm
* Power supply:  AC100V-240V=10% 50Hz
* Working temperature: 0°C~80°C
* Switch load power: 0-400W
* Standby power consumption: ≤0.5W Relative humidity: 10% to 93% (non-condensing)
* Control:Touch, app, brightness memory function

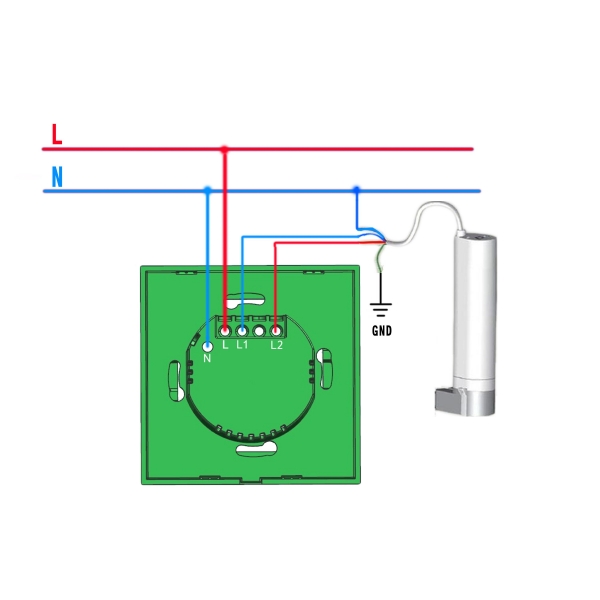

* Connection: N (Neutral), L(Line), L1 Control(open), L2 Control(Off),
                      GND(No need to connect if there isnt GND in case.)
* Radio signal power: 1mW
*Radio Protocol: Wi-Fi / ZigBee
* Radio rate: indoor 30 meters
* Radio rate: 50 meters outdoors, depending on building materials and structure
* App: iOS / Android
*Works with Alexa, Google Assistant and IFTTT
* Powered by Tuya
  • Model SM-SW101-C SM-SW101-CZ
    Protocol Wi-Fi ZigBee
    Chipset ESP8266 EFR32MG13P732
    Note No hub Need hub
    Works with Amazon Alexa,Google Assistant,IFTTT
    Switch touch is a one way Wi-Fi/ZigBee sensitive control Luxury glass panel wall switch.
    It can be paired with IOS/Android app Jinvoo Smart via Wi-Fi/ZigBee,allowing users to remotely turn on/off
    the LED and lignts from anywhere at any time.
    Its LED back light lets you easily find and turn on the switch at night.
    It can be used to control lights or home appliances.
    Upgrade your home with this modern,fasionable alternative to traditional light switches.
    Power supply:  AC100V-240V=10% 50Hz
    Working temperature: 0°C~80°C
    Switch load power: 0-400W
    Standby power consumption: ≤0.5W
    Relative humidity: 10% to 93% (non-condensing)
    Control:Touch ,app,brightness memory function
    Connection: N (Neutral),
                        L(Line),
                        L1 Control(open),
                        L2 Control(Off),
                        GND(No need to connect if there isn’t GND in case.)
    Product Specifications: (120*74*39)mm, (4.7*2.9*1.5)in
    Wi-Fi and ZigBee standard: 802.11b/g/n, 2.4GHz
    Wi-Fi and ZigBee save mode: WEP, WPA/WPA2
    App: iOS/ Android
    *Dimensions: 106x102x42 mm /color box,
                           540x300x475 mm/carton,
                           120pcs/carton,
                           25kg/carton;
    *Weight: 0.20kg /pc with color box;
