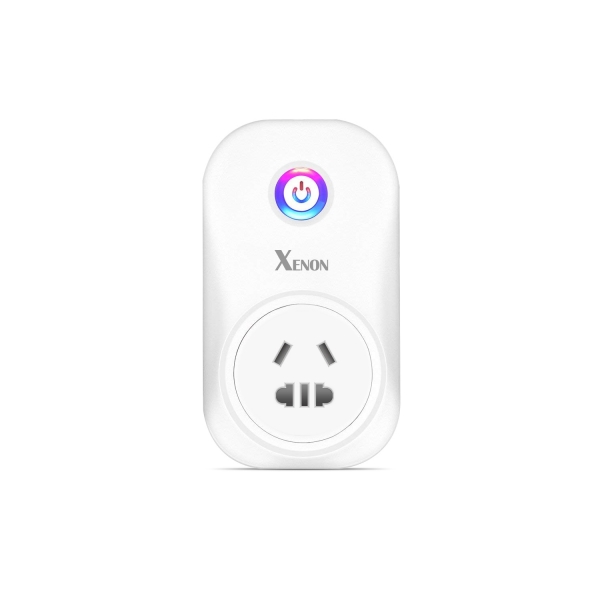

Chinese Type

SM-PW701-C2

Wi-Fi    SM-PW701-C2
ZigBee SM-PW701-C2Z
* Max power: 3000W
* Working current: 16A
* Working voltage: AC220V 50/60Hz
* Material: ABS flame retarding polymer
* Plug Standard: Chinese
* Power consuming: ≤0.3W
* Working temperature: -20 ~ 45℃ (-4 ~ 113℉)
* Working Humidity: ≤80%
* Radio signal power: 1mW
* Radio protocol: Wi-Fi
* Radio rate: 30 meter indoor
* Radio rate: 50 meter outdoor, depends on building materials and structures.
* App: iOS/Android
* Works with Alexa, Google Assistant and IFTTT
  • Model SM-PW701-C2 SM-PW701-C2Z
    Solution Wi-Fi ZigBee
    Chipset ESP8266 EFR32MG13P732
    Protocol 802.11b/g 802.15.4 PHY / MAC
    Max power: 3000W
    Working current: 16A
    Working voltage: AC220V 50/60Hz
    Material: ABS flame retarding polymer
    Plug Standard: CN
    Power consuming: ≤0.3W
    Working temperature: -20 ~ 45℃ (-4 ~ 113℉)
    Working Humidity: ≤80%
    Radio signal power: 1mW
    Radio protocol: Wi-Fi or ZigBee
    Radio rate: 30 meter indoor
    Radio rate: 50 meter outdoor, depends on building materials and structures.
    * Adopt WiFi protocol to secure the success of wireless two way communication
    * Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series WiFi module) to enhance the communication range
    * Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive
    * Overload protection
    *Dimensions: 116x76x68 mm/color box, 540x300x475 mm/carton, 128 pcs/carton, 22kg/carton;
    *Weight: 0.16kg /pc with color box;
    * App: iOS/Android
    * Works with Alexa, Google Assistant and IFTTT
